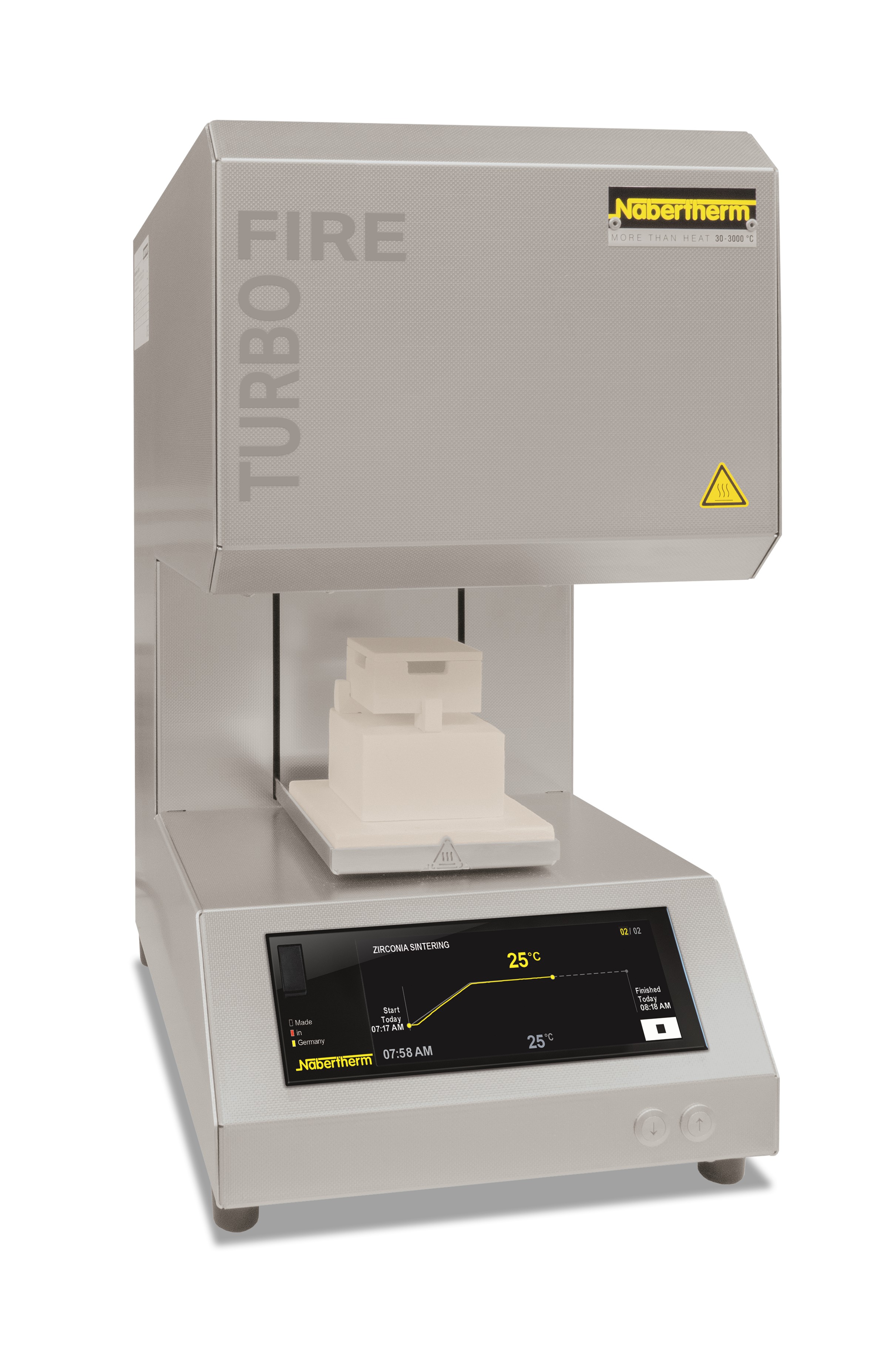

The high-temperature speed sintering furnace LHT 01/16 Turbo Fire was developed for the speed sintering of 1 - 3 single crowns made of translucent zirconium oxide up to a maximum temperature of 1600 °C. The entire sintering process can be completed within one hour. The furnace ideally suited for chairside production at the dentist or for urgent jobs in the dental laboratory. The electrically driving lifting table enables convenient charging. The allround heating of the furnace chamber with six heating elements made of molybdenum disilicide ensures a very good temperature uniformity and fast heating times can be achieved. The special insulation with low heat capacity additionally ensures short cooling times. The heating elements tailored to the process avoid chemical interactions between the charge and the furnace components as best as possible and offer a long service life.
The crowns are placed in a saggar made of technical ceramics. The high-temperature speed sintering furnace LHT 01/16 Turbo Fire sinters up to 3 single crowns within one hour. It can be programmed for all common temperature curves for speed sintering translucent zirconium oxide.
The colored, high-contrast 6.8 inch touch display enables convenient program input on the large screen. Programs can be displayed graphically and in tabular form.
